What Is IP Multimedia Subsystem (IMS)?

Telecom networks have changed a lot over the last few years. Traditional voice networks are no longer enough for operators that need to deliver voice, video, messaging, and other digital services through a single platform. That’s where the IP Multimedia Subsystem, better known as IMS, comes in.

IMS is a standardized architecture developed by 3GPP that allows telecom providers to deliver multimedia services over IP networks. Instead of separating voice from data like older networks did, IMS brings everything together inside one core platform. This makes it easier to launch services across LTE, 5G, Wi-Fi, and fixed broadband without rebuilding the entire network every time a new technology appears.

Today, IMS is the foundation behind services like VoLTE, VoWiFi, VoNR, hosted PBX, Unified Communications, and many cloud telecom platforms.

The telecommunications landscape has undergone a massive evolution, shifting from legacy circuit-switched networks to fully unified, IP-based infrastructures. At the heart of this transformation is the IP Multimedia Subsystem (IMS).

Whether you are launching a modern MVNO, upgrading carrier infrastructure, or deploying next-generation voice services like VoLTE and VoNR, understanding IMS architecture is critical.

This comprehensive technical guide explains what IMS is, breaks down its multi-layered architecture, details core components like the CSCF and HSS, and explores the shift toward Cloud-Native IMS platforms in 2026.

Key Protocols Powering IMS

IMS relies heavily on standardized, internet-friendly protocols rather than proprietary telecom standards:

• SIP (Session Initiation Protocol): The core signaling protocol used to establish, manage, and terminate real-time sessions.

• Diameter: Used for Authentication, Authorization, and Accounting (AAA) as well as routing queries within the network database.

• RTP (Real-time Transport Protocol): Used for carrying the actual voice and video media payload once a session is established.

• COPS (Common Open Policy Service): Utilized for policy control and resource allocation.

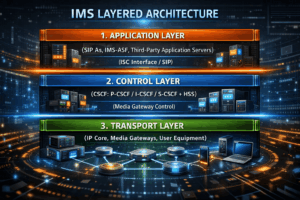

The Three-Layer IMS Architecture Model

The power of IMS lies in its modularity. By decoupling the application, control, and transport functions, operators can scale, modify, or upgrade one layer without affecting the others.

+--------------------------------------------------------+
|                 1. APPLICATION LAYER                   |
|  (SIP AS, IMS-ASF, Third-Party Application Servers)    |
+--------------------------------------------------------+
                           |  (ISC Interface / SIP)
+--------------------------------------------------------+
|                   2. CONTROL LAYER                     |
|        (CSCF: P-CSCF / I-CSCF / S-CSCF + HSS)          |
+--------------------------------------------------------+
                           |  (Media Gateway Control)
+--------------------------------------------------------+
|                  3. TRANSPORT LAYER                    |
|      (IP Core, Media Gateways, User Equipment)         |
+--------------------------------------------------------+

1. The Application Layer (Service Layer)

The Application Layer houses the servers that execute actual end-user services. In this layer, Application Servers (AS) host and deliver applications such as hosted PBX, Rich Communication Services (RCS), custom call routing, and Unified Communications (UCaaS).

• SIP AS: Hosts standard SIP-based services (e.g., call forwarding, voice mail).

• IP Multimedia Service Switching Function (IM-SSF): Acts as an interface to legacy intelligent network services.

2. The Control Layer (Session Layer)

This is the “brain” of the IMS architecture. It manages session registration, routing, security, and quality of service (QoS). It is divided into two main pillars: the CSCF and the HSS.

Call Session Control Function (CSCF)

The CSCF operates as a collection of specialized SIP servers. It is divided into three distinct roles:

1. Proxy-CSCF (P-CSCF): The first point of contact for any User Equipment (UE) entering the IMS network. It secures the traffic, encrypts the SIP signaling, and manages local quality of service (QoS) parameters.

2. Interrogating-CSCF (I-CSCF): The gateway to the home network. When an incoming SIP request arrives from an external network, the I-CSCF queries the database to find which serving controller should handle the call.

3. Serving-CSCF (S-CSCF): The central node of the control layer. It performs session control, registers user terminals, binds user locations to SIP addresses, and interacts with the application servers to trigger services.

Home Subscriber Server (HSS)

The HSS is the master database of the IMS network. It stores subscriber profiles, authentication credentials, active registration locations, and service-specific triggers. Think of the HSS as the central identity registry that the S-CSCF and I-CSCF query to authenticate and route calls.

3. The Transport Layer (User Plane Layer)

The Transport Layer (or Connectivity Layer) is responsible for initiating sessions and routing the actual physical media stream (voice/video packets). It connects the IP core network to various access networks (cellular, fixed-line, Wi-Fi) and legacy PSTN networks using Media Gateways (MGW) and Media Gateway Control Functions (MGCF) to translate protocol formats when communicating outside the IMS network.

Step-by-Step: How a Call Flows Through the IMS Architecture

To understand how these components work together, let’s trace a typical call routing flow when a user initiates a Voice over LTE (VoLTE) call:

1. Registration: The User Equipment (UE) sends a SIP REGISTER request. It first hits the P-CSCF (Proxy), which inspects the security headers.

2. Authentication Query: The P-CSCF forwards the registration to the I-CSCF (Interrogating), which queries the HSS (database) to verify the user’s subscription and find the appropriate S-CSCF (Serving).

3. Session Binding: The S-CSCF registers the user, pulls their profile from the HSS, and establishes the active session.

4. Call Initiation: When the user dials a number, a SIP INVITE goes to the S-CSCF. The S-CSCF determines if any Application Servers (AS) are needed (like billing or caller ID masking) and routes the call toward the destination receiver.

Transitioning to the Cloud: What is a Cloud-Native IMS Platform?

Legacy IMS networks required massive, proprietary, on-premise hardware deployments. This made scaling complex, slow, and incredibly expensive—creating a high barrier to entry for MVNOs and independent telecom startups.

Today, the industry is migrating to Cloud-Native IMS Platforms.

+-------------------------------------------------------------------+

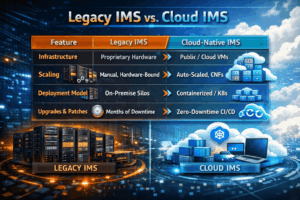

|                         Legacy IMS vs. Cloud IMS                  |
+-------------------------------------------------------------------+
| Feature               | Legacy IMS           | Cloud-Native IMS   |
+-----------------------+----------------------+--------------------+
| Infrastructure        | Proprietary Hardware | Public/Cloud VMs   |
| Scaling               | Manual, hardware-bound| Auto-scaled, CNFs  |
| Deployment Model      | On-premise Silos     | Containerized/K8s  |
| Upgrades & Patches    | Months of downtime   | Zero-downtime CI/CD|
+-----------------------+----------------------+--------------------+

How Cloud Native IMS Supports 5G VoNR

As operators continue rolling out standalone 5G networks, cloud-native IMS becomes even more valuable.

How cloud native IMS supports 5G VoNR is by providing a software-based voice core that can scale dynamically as traffic increases. Instead of relying on fixed hardware, operators can launch new instances automatically whenever demand grows.

This makes VoNR deployments faster, more efficient, and much easier to manage than traditional telecom infrastructure.

A Cloud-Native IMS abstracts the logical functions of the IMS architecture (like the CSCF and HSS) into Virtual Network Functions (VNFs) or containerized Cloud-Native Network Functions (CNFs). Running IMS on platforms like AWS, Google Cloud, or OpenStack offers three game-changing advantages:

1. Elastic Scalability: When voice traffic peaks during business hours, the cloud infrastructure automatically spins up additional virtual CSCF nodes to handle the load, scaling back down during off-peak hours.

2. Dramatic Cost Reductions: Shifting from physical data centers to cloud-based telecom services eliminates upfront CAPEX. Providers pay only for the exact network resources they consume.

3. Future-Proofing for 5G (VoNR): 5G networks are inherently software-defined. A Cloud-Native IMS acts as the native voice core for 5G Standalone (SA) networks, allowing operators to deploy Voice over New Radio (VoNR) with microservices agility.

Why IMS Matters for Wholesale VoIP Providers

A modern IMS core architecture for wholesale VoIP providers creates a reliable environment for voice routing, subscriber management, authentication, and service delivery.

Whether the business operates internationally or serves regional carriers, IMS helps improve scalability, simplify network management, and prepare the infrastructure for future technologies.

For companies launching new telecom services, deploying cloud based IMS switch for MVNO projects has become much faster than it was only a few years ago. Cloud infrastructure removes much of the complexity that older IMS deployments required, allowing operators to focus on growing their services instead of maintaining expensive hardware.

Elevate Your Telecom Services with VoiceBuy

Deploying and maintaining an on-premise IMS core is a monumental task. For modern MVNOs, wholesale operators, and digital telecom startups, partnering with an agile, cloud-native provider is the fastest path to profitability.

At VoiceBuy, we provide enterprise-grade VoIP termination, cloud-native softswitch deployments, and global routing architectures designed to integrate smoothly with modern IMS networks. Reach out to our technical team today to discover how we can optimize your voice infrastructure for the cloud era.

Final Thoughts

IMS is no longer just another telecom technology. It’s the foundation of modern voice and multimedia networks.

From VoLTE and VoWiFi to VoNR and cloud-native communications, almost every next-generation telecom service depends on a reliable IMS core. Operators that invest in flexible, cloud-ready IMS platforms today will be much better prepared for future network demands while reducing operational costs and speeding up service deployment.
